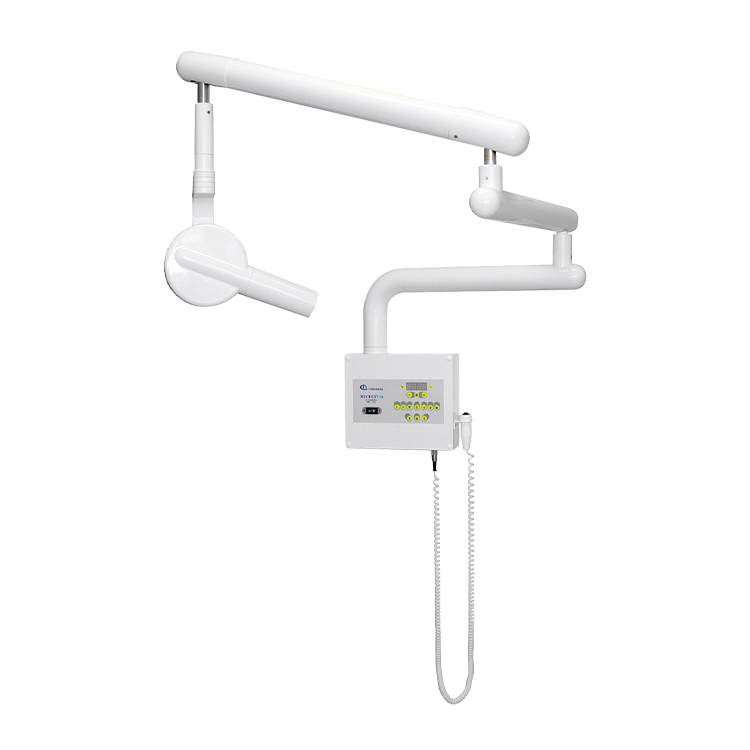

Stomatological X-ray allows intraoral and occlusive dental imaging to be performed. The X-ray chamber with set parameters of 70 kV and 8 mA as well as a focus size of 0.8 mm ensures high-quality contrast images with very short exposure times and a low total radiation dose. Constant image quality is also ensured by an electronic circuit for balancing mains voltage fluctuations. The leakage radiation of the chamber is very low and corresponds to the strictest standards. Thanks to its parameters, the chamber enables imaging with short times with excellent contrast imaging of the detail, thereby reducing the total radiation dose to the patient. Operation and setting of the device is very simple. The device is ready to work with film and computer visiography. The manufacturer offers the entire technology for sale
Connection to the network: 230V, 50-60Hz
Rated power: 1600 VA
Maximum network resistance: 1.6 Ω
Maximum power: 560 W
X-ray lamp OX: 70 P
Focal size: 0.8×0.8 mm
Scanning values: 70 kV-8 mA
Pause between frames: 20 s
Indication of radiation: optical, acoustic
Maximum exposure time: 2 s
Irradiation field/FSD: Ø 60/200 mm
Total filtration eq: 2.1 mm/A1
Weight: 55 kg
